Spec Grade Aerospace Materials

Military and Aerospace Silicones | spec grade aerospace materials

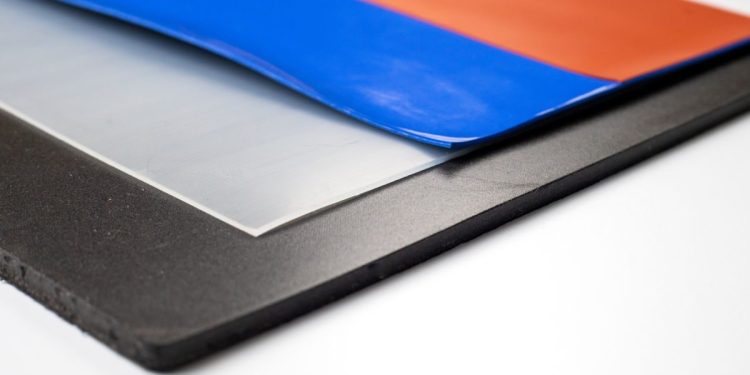

Specialty Silicone Products (SSP) makes spec grade aerospace materials that meet A-A-59588, AMS, MIL-DTL-25988, ASTM E595 and other specifications. Many of our products have been independently tested, and we offer a full Certificate of Analysis (COA) with every batch. Keep reading to learn about our products and contact SSP to request a quote.

A-A-59588 Materials

A-A-59588 is a specification from the U.S. General Services Administration (GSA) that replaced ZZ-R-765, which is still used on some part drawings. Sometimes, A-A-59588 is written as MIL SPEC AA-59588, AA 59588, AA59588, or A A 59588 instead. Regardless of how it’s written, A-A-59588 contains six alphanumeric classes with durometer-based grades.

The table below provides an overview of A-A-59588 designations and includes links to SSP products.

Class

Description

Grade

SSP Material

1A

Low temperature resistant

40

SSP278

50

SSP227

60

SSP227

70

SSP266

1B

Low temperature resistant and low compression set at high temperature

40

SSP278

50

SSP227

60

SSP227

70

SSP266

2A

High temperature resistant

25

SSP390

40

SSP220

50

SSP301

60

SSP352

70

SSP389

80

SSP391

2B

High temperature resistance and low compression set

40

SSP220

50

SSP301

60

SSP352

70

SSP389

80

SSP391

3A

Low temperature, tear and flex resistant

50

SSP200T

3B

Tear and flex resistant

60

SSP392-T

Applications for these materials include aircraft parts like engine mounts, vibration-isolating mounts, and exhaust hangers.

AMS Materials

Aerospace Material Specifications (AMS) from SAE International define properties, performance, and quality requirements for elastomers and other materials used in aerospace applications. The table below describes AMS silicones and provides links to SSP products, where you’ll find additional information such as technical data sheets.

AMS Number

Short Description with Durometer

SSP Product

AMS3301

General purpose (35-45)

SSP1331T

AMS3302

Heat and weather resistant (45-55)

SSP1773

AMS3303

Heat and weather resistant (55-65)

SSP352

AMS3304

Heat and weather resistant (65-75)

SSP389

AMS3305J

General purpose (80)

SSP2554

AMS3325

Fuel and oil resistant (55-65)

SSP2496

AMS3332

Extreme low temperature resistant (15-30)

SSP2534

AMS3345

1000 psi (45-55)

SSP1778

MIL-DTL-25988 Materials

MIL-DTL-25988 is a U.S. military detail specification that covers fluorosilicone materials for aerospace and defense applications. The current version of this spec, MIL-DTL-25988C, superseded MIL-R-25988B and will be replaced by AMS-R-25988B. In 2022, the Air Force Research Laboratory (AFRL) canceled MIL-DTL-25988D and reverted to MIL-DTL-25988C after determining that Revision D requirements could not be met.

MIL-DTL-25988 categorizes compliant materials according to Type, Class, and Grade.

  • Type 1 materials are for O-rings.
  • Type 2 materials are for molded parts, sheets, strips, and extruded shapes.
  • Class 1 materials are for general-purpose use.
  • Class 2 materials are higher-strength elastomers.
  • Grades are durometer-based.

The table below describes the MIL-DTL-25988 fluorosilicones that SSP makes.

Type

Class

Grade

SSP Product

2

1

40

SSP267

2

1

50

SSP338

2

1

60

SSP083

2

1

70

SSP100

2

1

80

SSP372

2

2

75

SSP082

ASTM E595 Materials

ASTM E595 is a standard test method developed by ASTM International to evaluate the outgassing properties of materials for use in space applications. It’s based on an earlier NASA test standard and measures Total Mass Loss (TML) and Collected Volatile Condensable Materials (CVCM) when a material is subjected to vacuum pressure and heat.

The table below describes the ASTM E595 low outgassing silicones that SSP makes.

SSP2575

low temperature silicone with space heritage

SSP-502-55LT

low temperature with EMI shielding

SSP-502-40-V0

40-durometer, flame-retardant silicone with EMI shielding and a UL 94V0 flame rating. Use in place of GORE GS2100.

SSP-502-60-V0

60-durometer, flame-retardant silicone with EMI shielding and a UL 94 V0 flame rating. Use in place of GORE GS5200.

Ask SSP for Spec Grade Aerospace Materials

Specialty Silicone Products makes spec grade aerospace materials at our ISO 9001:2015 certified facility in Ballston Spa, New York (USA). Along with fabricated products, SSP offers MIL-DTL-83528 Type A, B, C, D, and K materials for EMI gaskets. For traceable elastomers with lower minimum order quantities and shorter lead times, ask SSP.
