Solid Rectangle EMI Gaskets M83528/009

Contact Us

Solid Rectangle Part Number Code

EXXX-AAA-BBB-EXSR

  • EXXXX is the extruded material
  • AAA is Dimension A
  • BBB is Dimension B
  • EXSR indicates it’s an extruded solid rectangle


The tables below list sample part numbers and MIL-DTL-83528 part numbers.

Use instead of CHO-SEAL solid rectangle electrically conductive elastomer.

solid rectangle emi gaskets

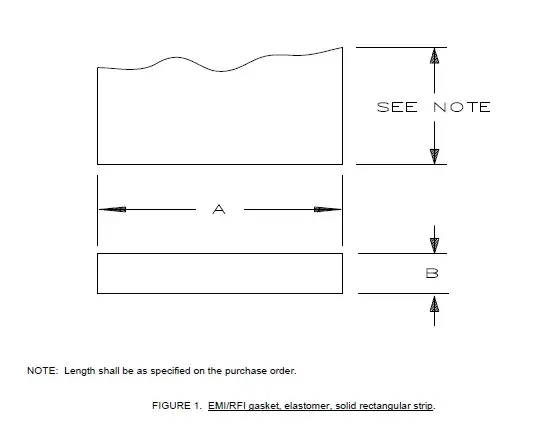

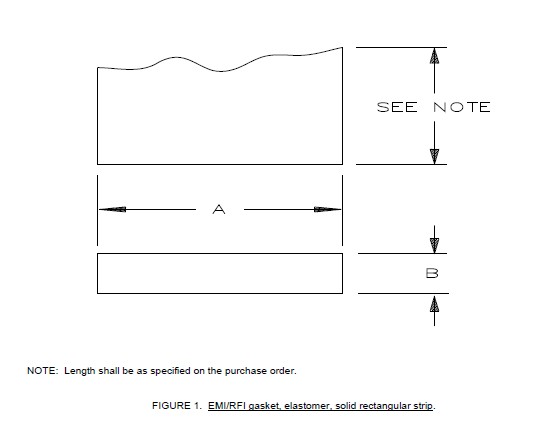

Sample Part Numbers and Sizes for Solid Rectangle EMI Gaskets

Solid Rectangle

MIL-DTL-83528

SSP Part Number

Nominal Dimensions

A (Width)

B (Height)

Type B and D Available

EXXXX-063-042-EXSR

.063

1.60

.042

1.07

EXXXX-095-062-EXSR

.095

2.41

.062

1.57

EXXXX-120-075-EXSR

.120

3.05

.075

1.91

EXXXX-095-062-EXSR

.095

2.41

.062

1.57

EXXXX-120-075-EXSR

.120

3.05

.075

1.91

EXXXX-125-062-EXSR

.125

3.18

.062

1.57

EXXXX-156-062-EXSR

.156

3.96

.062

1.57

EXXXX-250-062-EXSR

.250

6.35

.062

1.57

EXXXX-500-075-EXSR

.500

12.70

.075

1.91

EXXXX-500-125-EXSR

.500

12.70

.125

3.18

EXXXX-500-188-EXSR

.500

12.70

.188

4.78

EXXXX-750-062-EXSR

.750

19.05

.062

1.57

EXXXX-880-062-EXSR

.880

22.35

.062

1.57

EXXXX-1000-250-EXSR

1.000

25.40

.250

6.35

EXXXX-1180-062-EXSR

1.180

29.97

.062

1.57

EXXXX-093-093-EXSR

.093

2.36

.093

2.36

EXXXX-500-250-EXSR

.500

12.70

.250

6.35

EXXXX-650-032-EXSR

.650

16.51

.032

.81

EXXXX-250-032-EXSR

.250

6.35

.032

.81




M83528/009 Part Numbers for Solid Rectangle EMI Gaskets

For each of the materials in which SSP makes them, the table below lists standard Solid Rectangle.

E236865 is a 65-durometer silicone filled with silver-aluminum particles. It’s tan in color and QPL listed.

MIL-DTL-83528
Part Number

SSP
Part Number

Nominal Dimensions

A (Width)

B (Height)

M83528/
009X001

E2368-063-042-EXSR

.063

1.60

.042

1.07

M83528/
009X002

E2368-095-062-EXSR

.095

2.41

.062

1.57

M83528/
009X003

E2368-120-075-EXSR

.120

3.05

.075

1.91

M83528/
009X004

E2368-125-062-EXSR

.125

3.18

.062

1.57

M83528/
009X005

E2368-156-062-EXSR

.156

3.96

.062

1.57

M83528/
009X006

E2368-250-062-EXSR

.250

6.35

.062

1.57

M83528/
009X007

E2368-500-075-EXSR

.500

12.70

.075

1.91

M83528/
009X008

E2368-500-125-EXSR

.500

12.70

.125

3.18

M83528/
009X009

E2368-500-188-EXSR

.500

12.70

.188

4.78

M83528/
009X010

E2368-750-062-EXSR

.750

19.05

.062

1.57

M83528/
009X011

E2368-880-062-EXSR

.880

22.35

.062

1.57

M83528/
009X012

E2368-100-250-EXSR

1.000

25.40

.250

6.35

M83528/
009X013

E2368-118-062-EXSR

1.180

29.97

.062

1.57

N/A

E2368-093-093-EXSR

.093

2.36

.093

2.36

N/A

E2368-500-250-EXSR

.500

12.70

.250

6.35

N/A

E2368-650-032-EXSR

.650

16.51

.032

.81

N/A

E2368-250-032-EXSR

.250

6.35

.032

.81

N/A

E2368-063-032-EXSR

.063

1.60

.032

.81

E236865DB is a 65-durometer silicone filled with silver-aluminum particles. It’s tan in color and QPL listed.

MIL-DTL-83528
Part Number

SSP
Part Number

Nominal Dimensions

A (Width)

B (Height)

M83528/
009X001

E2368DB-063-042-EXSR

.063

1.60

.042

1.07

M83528/
009X002

E2368DB-095-062-EXSR

.095

2.41

.062

1.57

M83528/
009X003

E2368DB-120-075-EXSR

.120

3.05

.075

1.91

M83528/
009X004

E2368DB-125-062-EXSR

.125

3.18

.062

1.57

M83528/
009X005

E2368DB-156-062-EXSR

.156

3.96

.062

1.57

M83528/
009X006

E2368DB-250-062-EXSR

.250

6.35

.062

1.57

M83528/
009X007

E2368DB-500-075-EXSR

.500

12.70

.075

1.91

M83528/
009X008

E2368DB-500-125-EXSR

.500

12.70

.125

3.18

M83528/
009X009

E2368DB-500-188-EXSR

.500

12.70

.188

4.78

M83528/
009X010

E2368DB-750-062-EXSR

.750

19.05

.062

1.57

M83528/
009X011

E2368DB-880-062-EXSR

.880

22.35

.062

1.57

M83528/
009X012

E2368DB-100-250-EXSR

1.000

25.40

.250

6.35

M83528/
009X013

E2368DB-118-062-EXSR

1.180

29.97

.062

1.57

N/A

E2368DB-093-093-EXSR

.093

2.36

.093

2.36

N/A

E2368DB-500-250-EXSR

.500

12.70

.250

6.35

N/A

E2368DB-650-032-EXSR

.650

16.51

.032

.81

N/A

E2368DB-250-032-EXSR

.250

6.35

.032

.81

N/A

E2368DB-063-032-EXSR

.063

1.60

.032

.81

E248670 is a 70-durometer fluorosilicone filled with silver-aluminum particles. It’s tan in color and QPL listed.

MIL-DTL-83528
Part Number

SSP
Part Number

Nominal Dimensions

A (Width)

B (Height)

M83528/
009X001

E2486-063-042-EXSR

.063

1.60

.042

1.07

M83528/
009X002

E2486-095-062-EXSR

.095

2.41

.062

1.57

M83528/
009X003

E2486-120-075-EXSR

.120

3.05

.075

1.91

M83528/
009X004

E2486-125-062-EXSR

.125

3.18

.062

1.57

M83528/
009X005

E2486-156-062-EXSR

.156

3.96

.062

1.57

M83528/
009X006

E2486-250-062-EXSR

.250

6.35

.062

1.57

M83528/
009X007

E2486-500-075-EXSR

.500

12.70

.075

1.91

M83528/
009X008

E2486-500-125-EXSR

.500

12.70

.125

3.18

M83528/
009X009

E2486-500-188-EXSR

.500

12.70

.188

4.78

M83528/
009X010

E2486-750-062-EXSR

.750

19.05

.062

1.57

M83528/
009X011

E2486-880-062-EXSR

.880

22.35

.062

1.57

M83528/
009X012

E2486-100-250-EXSR

1.000

25.40

.250

6.35

M83528/
009X013

E2486-118-062-EXSR

1.180

29.97

.062

1.57

N/A

E2486-093-093-EXSR

.093

2.36

.093

2.36

N/A

E2486-500-250-EXSR

.500

12.70

.250

6.35

N/A

E2486-650-032-EXSR

.650

16.51

.032

.81

N/A

E2486-250-032-EXSR

.250

6.35

.032

.81

N/A

E2486-063-032-EXSR

.063

1.60

.032

.81

E248670DB is a 70-durometer fluorosilicone filled with silver-aluminum particles. It’s dark blue in color and QPL listed.

MIL-DTL-83528
Part Number

SSP
Part Number

Nominal Dimensions

A (Width)

B (Height)

M83528/
009X001

E2486DB-063-042-EXSR

.063

1.60

.042

1.07

M83528/
009X002

E2468DB-095-062-EXSR

.095

2.41

.062

1.57

M83528/
009X003

E2468DB-120-075-EXSR

.120

3.05

.075

1.91

M83528/
009X004

E2468DB-125-062-EXSR

.125

3.18

.062

1.57

M83528/
009X005

E2468DB-156-062-EXSR

.156

3.96

.062

1.57

M83528/
009X006

E2468DB-250-062-EXSR

.250

6.35

.062

1.57

M83528/
009X007

E2468DB-500-075-EXSR

.500

12.70

.075

1.91

M83528/
009X008

E2468DB-500-125-EXSR

.500

12.70

.125

3.18

M83528/
009X009

E2468DB-500-188-EXSR

.500

12.70

.188

4.78

M83528/
009X010

E2468DB-750-062-EXSR

.750

19.05

.062

1.57

M83528/
009X011

E2468DB-880-062-EXSR

.880

22.35

.062

1.57

M83528/
009X012

E2468DB-100-250-EXSR

1.000

25.40

.250

6.35

M83528/
009X013

E2468DB-118-062-EXSR

1.180

29.97

.062

1.57

N/A

E2468DB-093-093-EXSR

.093

2.36

.093

2.36

N/A

E2468DB-500-250-EXSR

.500

12.70

.250

6.35

N/A

E2468DB-650-032-EXSR

.650

16.51

.032

.81

N/A

E2468DB-250-032-EXSR

.250

6.35

.032

.81

N/A

E2468DB-063-032-EXSR

.063

1.60

.032

.81

E2529 is a 68-durometer silicone filled with nickel-aluminum particles.

MIL-DTL-83528
Part Number

SSP
Part Number

Nominal Dimensions

A (Width)

B (Height)

M83528/
009X001

E2529-063-042-EXSR

.063

1.60

.042

1.07

M83528/
009X002

E2529-095-062-EXSR

.095

2.41

.062

1.57

M83528/
009X003

E2529-120-075-EXSR

.120

3.05

.075

1.91

M83528/
009X004

E2529-125-062-EXSR

.125

3.18

.062

1.57

M83528/
009X005

E2529-156-062-EXSR

.156

3.96

.062

1.57

M83528/
009X006

E2529-250-062-EXSR

.250

6.35

.062

1.57

M83528/
009X007

E2529-500-075-EXSR

.500

12.70

.075

1.91

M83528/
009X008

E2529-500-125-EXSR

.500

12.70

.125

3.18

M83528/
009X009

E2529-500-188-EXSR

.500

12.70

.188

4.78

M83528/
009X010

E2529-750-062-EXSR

.750

19.05

.062

1.57

M83528/
009X011

E2529-880-062-EXSR

.880

22.35

.062

1.57

M83528/
009X012

E2529-100-250-EXSR

1.000

25.40

.250

6.35

M83528/
009X013

E2529-118-062-EXSR

1.180

29.97

.062

1.57

N/A

E2529-093-093-EXSR

.093

2.36

.093

2.36

N/A

E2529-500-250-EXSR

.500

12.70

.250

6.35

N/A

E2529-650-032-EXSR

.650

16.51

.032

.81

N/A

E2529-250-032-EXSR

.250

6.35

.032

.81

N/A

E2529-063-032-EXSR

.063

1.60

.032

.81

E2551 is a 72-durometer silicone filled with nickel-aluminum particles.

MIL-DTL-83528
Part Number

SSP
Part Number

Nominal Dimensions

A (Width)

B (Height)

M83528/
009X001

E2551-063-042-EXSR

.063

1.60

.042

1.07

M83528/
009X002

E2551-095-062-EXSR

.095

2.41

.062

1.57

M83528/
009X003

E2551-120-075-EXSR

.120

3.05

.075

1.91

M83528/
009X004

E2551-125-062-EXSR

.125

3.18

.062

1.57

M83528/
009X005

E2551-156-062-EXSR

.156

3.96

.062

1.57

M83528/
009X006

E2551-250-062-EXSR

.250

6.35

.062

1.57

M83528/
009X007

E2551-500-075-EXSR

.500

12.70

.075

1.91

M83528/
009X008

E2551-500-125-EXSR

.500

12.70

.125

3.18

M83528/
009X009

E2551-500-188-EXSR

.500

12.70

.188

4.78

M83528/
009X010

E2551-750-062-EXSR

.750

19.05

.062

1.57

M83528/
009X011

E2551-880-062-EXSR

.880

22.35

.062

1.57

M83528/
009X012

E2551-100-250-EXSR

1.000

25.40

.250

6.35

M83528/
009X013

E2551-118-062-EXSR

1.180

29.97

.062

1.57

N/A

E2551-093-093-EXSR

.093

2.36

.093

2.36

N/A

E2551-500-250-EXSR

.500

12.70

.250

6.35

N/A

E2551-650-032-EXSR

.650

16.51

.032

.81

N/A

E2551-250-032-EXSR

.250

6.35

.032

.81

N/A

E2551-063-032-EXSR

.063

1.60

.032

.81

E50265 is a 65-durometer silicone filled with nickel-graphite particles.

MIL-DTL-83528
Part Number

SSP
Part Number

Nominal Dimensions

A (Width)

B (Height)

M83528/
009X001

E50265-063-042-EXSR

.063

1.60

.042

1.07

M83528/
009X002

E50265-095-062-EXSR

.095

2.41

.062

1.57

M83528/
009X003

E50265-120-075-EXSR

.120

3.05

.075

1.91

M83528/
009X004

E50265-125-062-EXSR

.125

3.18

.062

1.57

M83528/
009X005

E50265-156-062-EXSR

.156

3.96

.062

1.57

M83528/
009X006

E50265-250-062-EXSR

.250

6.35

.062

1.57

M83528/
009X007

E50265-500-075-EXSR

.500

12.70

.075

1.91

M83528/
009X008

E50265-500-125-EXSR

.500

12.70

.125

3.18

M83528/
009X009

E50265-500-188-EXSR

.500

12.70

.188

4.78

M83528/
009X010

E50265-750-062-EXSR

.750

19.05

.062

1.57

M83528/
009X011

E50265-880-062-EXSR

.880

22.35

.062

1.57

M83528/
009X012

E50265-100-250-EXSR

1.000

25.40

.250

6.35

M83528/
009X013

E50265-118-062-EXSR

1.180

29.97

.062

1.57

N/A

E50265-093-093-EXSR

.093

2.36

.093

2.36

N/A

E50265-500-250-EXSR

.500

12.70

.250

6.35

N/A

E50265-650-032-EXSR

.650

16.51

.032

.81

N/A

E50265-250-032-EXSR

.250

6.35

.032

.81

N/A

E50265-063-032-EXSR

.063

1.60

.032

.81

E502F60 is a 60-durometer fluorosilicone filled with nickel-graphite particles.

MIL-DTL-83528
Part Number

SSP
Part Number

Nominal Dimensions

A (Width)

B (Height)

M83528/
009X001

E502F60-063-042-EXSR

.063

1.60

.042

1.07

M83528/
009X002

E502F60-095-062-EXSR

.095

2.41

.062

1.57

M83528/
009X003

E502F60-120-075-EXSR

.120

3.05

.075

1.91

M83528/
009X004

E502F60-125-062-EXSR

.125

3.18

.062

1.57

M83528/
009X005

E502F60-156-062-EXSR

.156

3.96

.062

1.57

M83528/
009X006

E502F60-250-062-EXSR

.250

6.35

.062

1.57

M83528/
009X007

E502F60-500-075-EXSR

.500

12.70

.075

1.91

M83528/
009X008

E502F60-500-125-EXSR

.500

12.70

.125

3.18

M83528/
009X009

E502F60-500-188-EXSR

.500

12.70

.188

4.78

M83528/
009X010

E502F60-750-062-EXSR

.750

19.05

.062

1.57

M83528/
009X011

E502F60-880-062-EXSR

.880

22.35

.062

1.57

M83528/
009X012

E50260F-100-250-EXSR

1.000

25.40

.250

6.35

M83528/
009X013

E502F60-118-062-EXSR

1.180

29.97

.062

1.57

N/A

E502F60-093-093-EXSR

.093

2.36

.093

2.36

N/A

E502F60-500-250-EXSR

.500

12.70

.250

6.35

N/A

E502F60-650-032-EXSR

.650

16.51

.032

.81

N/A

E502F60-250-032-EXSR

.250

6.35

.032

.81

N/A

E502F60-063-032-EXSR

.063

1.60

.032

.81

Contact Us
