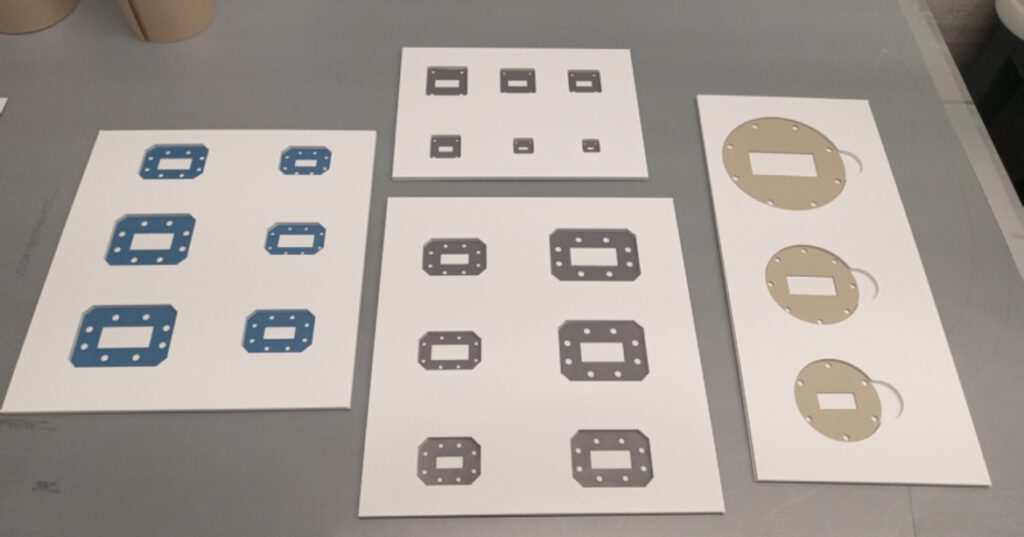

SSP makes M83528/013 EMI waveguide gaskets from MIL-DTL-8328 Type A, B, C, D and K materials that are part of the Qualified Products List (QPL) from the U.S. Defense Logistics Agency (DLA). SSP’s M83528 QPL certified materials are alternatives, or offsets, to Parker Chomerics CHO-SEAL materials*.
Whether you need ready-to-fabricate EMI shielding silicones or ready-to-install EMI Waveguide Gaskets, SSP has faster lead times and lower minimum order quantities than you’ll find elsewhere. Contact us for a quote and let us know what you need.

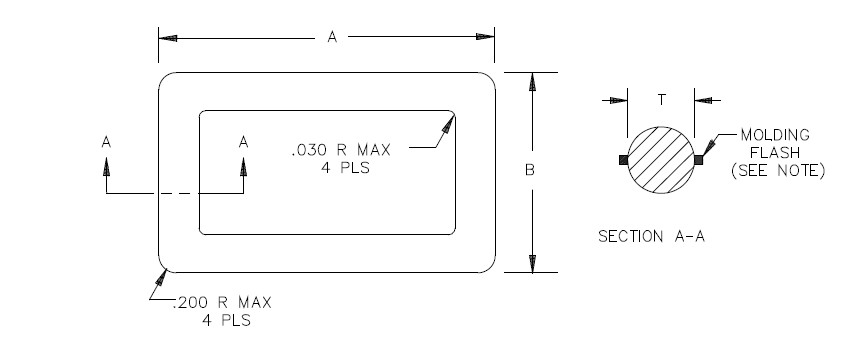

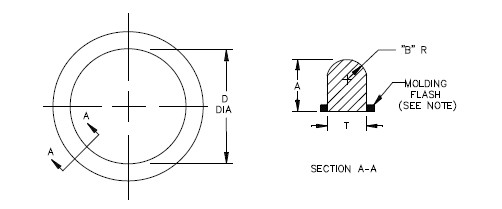

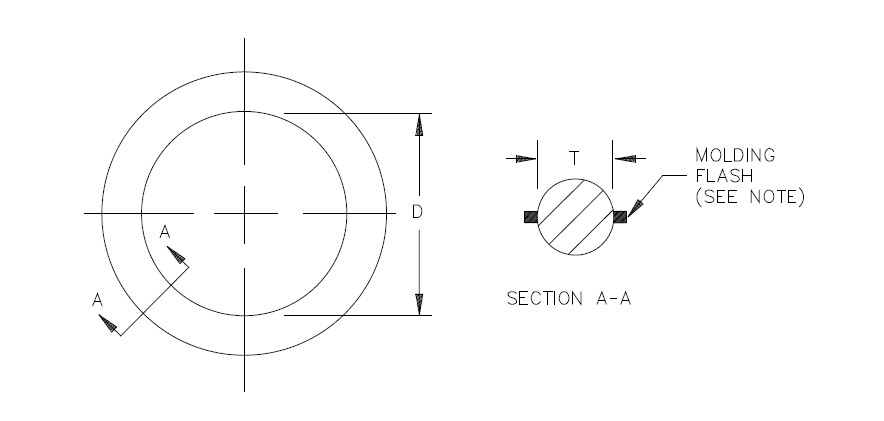

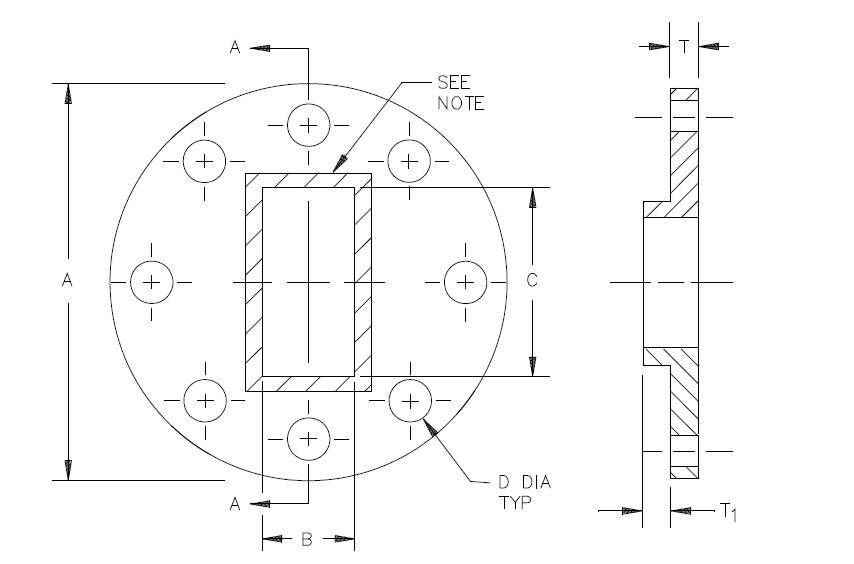

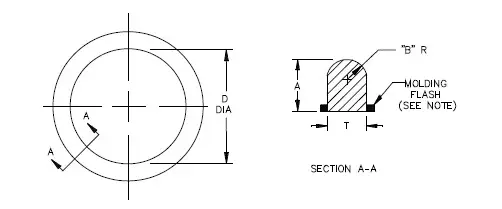

There are A, B, C, D, and E configurations for M83528/013 EMI waveguide gaskets.

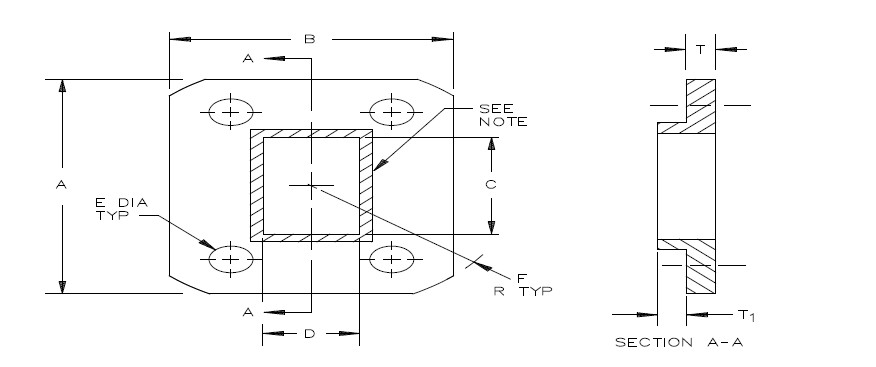

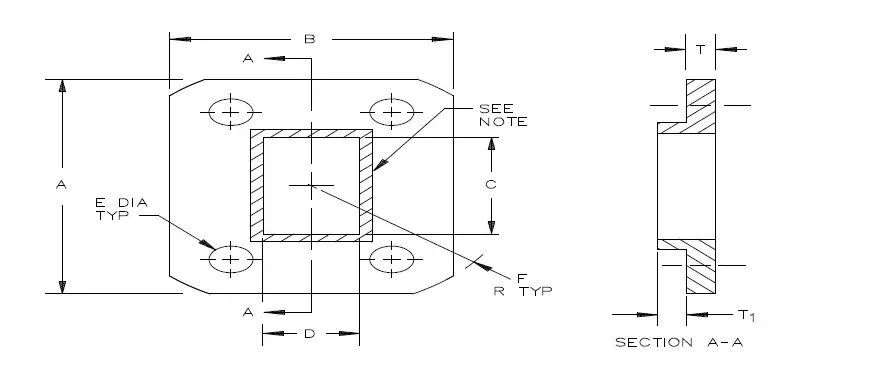

M83528/013 Configuration A applies to EMI waveguide gaskets that are flat, die cut, and square or rectangular in shape.
Use this table to find M83528/013 part numbers and dimensions.
Substitute the X in the part number for the lettered designation of the M83528 material you need.
The choices for material types are A, B, C, D, or K. (This page also contains M83528 part number tables for each lettered material type.)
| MIL-DTL-83528 Part Number | Dimensions (Configuration A) | |||||||||||||
| A ± .015 (0.38) | B ± .015 (0.38) | C + .015 (0.38) -.000 (0.00) | D + .015 (0.38) – .000 (0.00) | E ± .010 (0.25) | T ± .003 (0.08) | F Radius ± .010 (0.25) | ||||||||
M83528/013X001 | .750 | 19.05 | .750 | 19.05 | .145 | 3.68 | .285 | 7.24 | .116 | 2.95 | .027 | .69 | .469 | 11.91 |
M83528/013X003 | .875 | 22.23 | .875 | 22.23 | .175 | 4.45 | .425 | 10.80 | .116 | 2.95 | .027 | .69 | .563 | 14.30 |
M83528/013X005 | 1.313 | 33.35 | 1.313 | 33.35 | .630 | 16.00 | .320 | 8.13 | .140 | 3.56 | .027 | .69 | .875 | 22.23 |
M83528/013X007 | 1.496 | 38.00 | 1.496 | 38.00 | .760 | 19.30 | .385 | 9.78 | .155 | 3.94 | .027 | .69 | .450 | 11.43 |
M83528/013X009 | 1.625 | 41.28 | 1.625 | 41.28 | .905 | 22.99 | .405 | 10.29 | .169 | 4.29 | .027 | .69 | .469 | 11.91 |
M83528/013X010 | 1.594 | 40.49 | 2.094 | 53.19 | .405 | 10.29 | .905 | 22.99 | .169 | 4.29 | .027 | .69 | .250 | 6.35 |
M83528/013X015 | 1.875 | 47.63 | 1.875 | 47.63 | 1.130 | 28.70 | .505 | 12.83 | .180 | 4.57 | .027 | .69 | 1.15 | 29.21 |
M83528/013X016 | 1.750 | 44.45 | 2.500 | 63.50 | .505 | 12.83 | 1.130 | 28.70 | .171 | 4.34 | .027 | .69 | .250 | 6.35 |
M83528/013X020 | 1.937 | 49.20 | 2.687 | 68.25 | .633 | 16.08 | 1.380 | 35.05 | .206 | 5.23 | .027 | .69 | .250 | 6.35 |
M83528/013X021 | 1.531 | 38.89 | 2.281 | 57.94 | .632 | 16.05 | 1.382 | 35.10 | .150 | 3.81 | .027 | .69 | .125 | 3.18 |
M83528/013X024 | 2.438 | 61.93 | 3.188 | 80.98 | .805 | 20.45 | 1.600 | 40.64 | .257 | 6.53 | .027 | .69 | .313 | 7.95 |
M83528/013X025 | 1.750 | 44.45 | 2.500 | 63.50 | .800 | 20.32 | 1.600 | 40.64 | .160 .150 | 4.06 3.81 | .027 | .69 | .125 | 3.18 |
M83528/013X027 | 3.500 | 88.90 | 2.500 | 63.50 | 1.880 | 47.75 | .880 | 22.35 | .266 | 6.76 | .027 | .69 | .313 | 7.95 |
M83528/013X028 | 1.784 | 45.31 | 2.781 | 70.64 | .882 | 22.40 | 1.882 | 47.80 | .156 .141 | 3.96 3.58 | .027 | .69 | .125 | 3.18 |
M83528/013X031 | 2.750 | 69.85 | 3.875 | 98.43 | 1.155 | 29.34 | 2.300 | 58.42 | .270 | 6.86 | .027 | .69 | .312 | 7.92 |
M83528/013X032 | 2.000 | 50.80 | 3.156 | 80.16 | 1.155 | 29.34 | 2.300 | 58.42 | .150 | 3.81 | .027 | .69 | .125 | 3.18 |
M83528/013X034 | 4.500 | 114.30 | 3.000 | 76.20 | 2.850 | 72.39 | 1.350 | 34.29 | .266 | 6.76 | .027 | .69 | .313 | 7.95 |
M83528/013X035 | 3.844 | 97.64 | 2.344 | 59.54 | 2.850 | 72.39 | 1.350 | 34.29 | .172 .188 | 4.37 4.78 | .027 | .69 | .125 | 3.18 |
M83528/013X038 | 3.750 | 95.25 | 5.440 | 138.18 | 1.710 | 43.43 | 3.410 | 86.61 | .264 .250 | 6.71 6.35 | .027 | .69 | .250 | 6.35 |
M83528/013X039 | 3.750 | 95.25 | 5.438 | 138.13 | 1.710 | 43.43 | 3.410 | 86.61 | .266 | 6.76 | .027 | .69 | .250 | 6.35 |
M83528/013X040 | 4.188 | 106.38 | 6.344 | 161.14 | 2.160 | 54.86 | 4.310 | 109.47 | .266 .281 | 6.76 7.14 | .027 | .69 | .250 | 6.35 |
M83528/013X041 | 6.344 | 161.14 | 4.188 | 106.38 | 4.310 | 109.47 | 2.160 | 54.86 | .266 | 6.76 | .027 | .69 | .250 | 6.35 |
M83528/013X042 | 5.438 | 138.13 | 8.688 | 220.68 | 3.260 | 82.80 | 6.510 | 165.35 | .250 .328 | 6.35 8.33 | .027 | .69 | .250 | 6.35 |
SSP fabricates M83528/013 EMI waveguide gaskets from SSP2569-65, a QPL certified MIL-DTL-83528 Type A material.
Use SSP2569-65 instead of Parker Chomerics CHO-SEAL 1215.
| MIL-DTL-83528 Part Number | Dimensions (Configuration A) | |||||||||||||
| A ± .015 (0.38) | B ± .015 (0.38) | C + .015 (0.38) -.000 (0.00) | D + .015 (0.38) – .000 (0.00) | E ± .010 (0.25) | T ± .003 (0.08) | F Radius ± .010 (0.25) | ||||||||
M83528/013A001 | .750 | 19.05 | .750 | 19.05 | .145 | 3.68 | .285 | 7.24 | .116 | 2.95 | .027 | .69 | .469 | 11.91 |
M83528/013A003 | .875 | 22.23 | .875 | 22.23 | .175 | 4.45 | .425 | 10.80 | .116 | 2.95 | .027 | .69 | .563 | 14.30 |
M83528/013A005 | 1.313 | 33.35 | 1.313 | 33.35 | .630 | 16.00 | .320 | 8.13 | .140 | 3.56 | .027 | .69 | .875 | 22.23 |
M83528/013A007 | 1.496 | 38.00 | 1.496 | 38.00 | .760 | 19.30 | .385 | 9.78 | .155 | 3.94 | .027 | .69 | .450 | 11.43 |
M83528/013A009 | 1.625 | 41.28 | 1.625 | 41.28 | .905 | 22.99 | .405 | 10.29 | .169 | 4.29 | .027 | .69 | .469 | 11.91 |
M83528/013A010 | 1.594 | 40.49 | 2.094 | 53.19 | .405 | 10.29 | .905 | 22.99 | .169 | 4.29 | .027 | .69 | .250 | 6.35 |
M83528/013A015 | 1.875 | 47.63 | 1.875 | 47.63 | 1.130 | 28.70 | .505 | 12.83 | .180 | 4.57 | .027 | .69 | 1.15 | 29.21 |
M83528/013A016 | 1.750 | 44.45 | 2.500 | 63.50 | .505 | 12.83 | 1.130 | 28.70 | .171 | 4.34 | .027 | .69 | .250 | 6.35 |
M83528/013A020 | 1.937 | 49.20 | 2.687 | 68.25 | .633 | 16.08 | 1.380 | 35.05 | .206 | 5.23 | .027 | .69 | .250 | 6.35 |
M83528/013A021 | 1.531 | 38.89 | 2.281 | 57.94 | .632 | 16.05 | 1.382 | 35.10 | .150 | 3.81 | .027 | .69 | .125 | 3.18 |
M83528/013A024 | 2.438 | 61.93 | 3.188 | 80.98 | .805 | 20.45 | 1.600 | 40.64 | .257 | 6.53 | .027 | .69 | .313 | 7.95 |
M83528/013A025 | 1.750 | 44.45 | 2.500 | 63.50 | .800 | 20.32 | 1.600 | 40.64 | .160 .150 | 4.06 3.81 | .027 | .69 | .125 | 3.18 |
M83528/013A027 | 3.500 | 88.90 | 2.500 | 63.50 | 1.880 | 47.75 | .880 | 22.35 | .266 | 6.76 | .027 | .69 | .313 | 7.95 |
M83528/013A028 | 1.784 | 45.31 | 2.781 | 70.64 | .882 | 22.40 | 1.882 | 47.80 | .156 .141 | 3.96 3.58 | .027 | .69 | .125 | 3.18 |
M83528/013A031 | 2.750 | 69.85 | 3.875 | 98.43 | 1.155 | 29.34 | 2.300 | 58.42 | .270 | 6.86 | .027 | .69 | .312 | 7.92 |
M83528/013A032 | 2.000 | 50.80 | 3.156 | 80.16 | 1.155 | 29.34 | 2.300 | 58.42 | .150 | 3.81 | .027 | .69 | .125 | 3.18 |
M83528/013A034 | 4.500 | 114.30 | 3.000 | 76.20 | 2.850 | 72.39 | 1.350 | 34.29 | .266 | 6.76 | .027 | .69 | .313 | 7.95 |
M83528/013A035 | 3.844 | 97.64 | 2.344 | 59.54 | 2.850 | 72.39 | 1.350 | 34.29 | .172 .188 | 4.37 4.78 | .027 | .69 | .125 | 3.18 |
M83528/013A038 | 3.750 | 95.25 | 5.440 | 138.18 | 1.710 | 43.43 | 3.410 | 86.61 | .264 .250 | 6.71 6.35 | .027 | .69 | .250 | 6.35 |
M83528/013A039 | 3.750 | 95.25 | 5.438 | 138.13 | 1.710 | 43.43 | 3.410 | 86.61 | .266 | 6.76 | .027 | .69 | .250 | 6.35 |
M83528/013A040 | 4.188 | 106.38 | 6.344 | 161.14 | 2.160 | 54.86 | 4.310 | 109.47 | .266 .281 | 6.76 7.14 | .027 | .69 | .250 | 6.35 |
M83528/013A041 | 6.344 | 161.14 | 4.188 | 106.38 | 4.310 | 109.47 | 2.160 | 54.86 | .266 | 6.76 | .027 | .69 | .250 | 6.35 |
M83528/013A042 | 5.438 | 138.13 | 8.688 | 220.68 | 3.260 | 82.80 | 6.510 | 165.35 | .250 .328 | 6.35 8.33 | .027 | .69 | .250 | 6.35 |
SSP fabricates M83528/013 EMI waveguide gaskets from SSP2568-65, a QPL certified MIL-DTL-83528 Type B material.
Use SSP2568-65 instead of Parker Chomerics CHO-SEAL 1285.
| MIL-DTL-83528 Part Number | Dimensions (Configuration A) | |||||||||||||
| A ± .015 (0.38) | B ± .015 (0.38) | C + .015 (0.38) -.000 (0.00) | D + .015 (0.38) – .000 (0.00) | E ± .010 (0.25) | T ± .003 (0.08) | F Radius ± .010 (0.25) | ||||||||
M83528/013B001 | .750 | 19.05 | .750 | 19.05 | .145 | 3.68 | .285 | 7.24 | .116 | 2.95 | .027 | .69 | .469 | 11.91 |
M83528/013B003 | .875 | 22.23 | .875 | 22.23 | .175 | 4.45 | .425 | 10.80 | .116 | 2.95 | .027 | .69 | .563 | 14.30 |
M83528/013B005 | 1.313 | 33.35 | 1.313 | 33.35 | .630 | 16.00 | .320 | 8.13 | .140 | 3.56 | .027 | .69 | .875 | 22.23 |
M83528/013B007 | 1.496 | 38.00 | 1.496 | 38.00 | .760 | 19.30 | .385 | 9.78 | .155 | 3.94 | .027 | .69 | .450 | 11.43 |
M83528/013B009 | 1.625 | 41.28 | 1.625 | 41.28 | .905 | 22.99 | .405 | 10.29 | .169 | 4.29 | .027 | .69 | .469 | 11.91 |
M83528/013B010 | 1.594 | 40.49 | 2.094 | 53.19 | .405 | 10.29 | .905 | 22.99 | .169 | 4.29 | .027 | .69 | .250 | 6.35 |
M83528/013B015 | 1.875 | 47.63 | 1.875 | 47.63 | 1.130 | 28.70 | .505 | 12.83 | .180 | 4.57 | .027 | .69 | 1.15 | 29.21 |
M83528/013B016 | 1.750 | 44.45 | 2.500 | 63.50 | .505 | 12.83 | 1.130 | 28.70 | .171 | 4.34 | .027 | .69 | .250 | 6.35 |
M83528/013B020 | 1.937 | 49.20 | 2.687 | 68.25 | .633 | 16.08 | 1.380 | 35.05 | .206 | 5.23 | .027 | .69 | .250 | 6.35 |
M83528/013B021 | 1.531 | 38.89 | 2.281 | 57.94 | .632 | 16.05 | 1.382 | 35.10 | .150 | 3.81 | .027 | .69 | .125 | 3.18 |
M83528/013B024 | 2.438 | 61.93 | 3.188 | 80.98 | .805 | 20.45 | 1.600 | 40.64 | .257 | 6.53 | .027 | .69 | .313 | 7.95 |
M83528/013B025 | 1.750 | 44.45 | 2.500 | 63.50 | .800 | 20.32 | 1.600 | 40.64 | .160 .150 | 4.06 3.81 | .027 | .69 | .125 | 3.18 |
M83528/013B027 | 3.500 | 88.90 | 2.500 | 63.50 | 1.880 | 47.75 | .880 | 22.35 | .266 | 6.76 | .027 | .69 | .313 | 7.95 |
M83528/013B028 | 1.784 | 45.31 | 2.781 | 70.64 | .882 | 22.40 | 1.882 | 47.80 | .156 .141 | 3.96 3.58 | .027 | .69 | .125 | 3.18 |
M83528/013B031 | 2.750 | 69.85 | 3.875 | 98.43 | 1.155 | 29.34 | 2.300 | 58.42 | .270 | 6.86 | .027 | .69 | .312 | 7.92 |
M83528/013B032 | 2.000 | 50.80 | 3.156 | 80.16 | 1.155 | 29.34 | 2.300 | 58.42 | .150 | 3.81 | .027 | .69 | .125 | 3.18 |
M83528/013B034 | 4.500 | 114.30 | 3.000 | 76.20 | 2.850 | 72.39 | 1.350 | 34.29 | .266 | 6.76 | .027 | .69 | .313 | 7.95 |
M83528/013B035 | 3.844 | 97.64 | 2.344 | 59.54 | 2.850 | 72.39 | 1.350 | 34.29 | .172 .188 | 4.37 4.78 | .027 | .69 | .125 | 3.18 |
M83528/013B038 | 3.750 | 95.25 | 5.440 | 138.18 | 1.710 | 43.43 | 3.410 | 86.61 | .264 .250 | 6.71 6.35 | .027 | .69 | .250 | 6.35 |
M83528/013B039 | 3.750 | 95.25 | 5.438 | 138.13 | 1.710 | 43.43 | 3.410 | 86.61 | .266 | 6.76 | .027 | .69 | .250 | 6.35 |
M83528/013B040 | 4.188 | 106.38 | 6.344 | 161.14 | 2.160 | 54.86 | 4.310 | 109.47 | .266 .281 | 6.76 7.14 | .027 | .69 | .250 | 6.35 |
M83528/013B041 | 6.344 | 161.14 | 4.188 | 106.38 | 4.310 | 109.47 | 2.160 | 54.86 | .266 | 6.76 | .027 | .69 | .250 | 6.35 |
M83528/013B042 | 5.438 | 138.13 | 8.688 | 220.68 | 3.260 | 82.80 | 6.510 | 165.35 | .250 .328 | 6.35 8.33 | .027 | .69 | .250 | 6.35 |
SSP fabricates M83528/013 EMI waveguide gaskets from SSP2573-75, a QPL certified MIL-DTL-83528 Type C material.
Use SSP2573-75 instead of Parker Chomerics CHO-SEAL 1217.
| MIL-DTL-83528 Part Number | Dimensions (Configuration A) | |||||||||||||
| A ± .015 (0.38) | B ± .015 (0.38) | C + .015 (0.38) -.000 (0.00) | D + .015 (0.38) – .000 (0.00) | E ± .010 (0.25) | T ± .003 (0.08) | F Radius ± .010 (0.25) | ||||||||
M83528/013C001 | .750 | 19.05 | .750 | 19.05 | .145 | 3.68 | .285 | 7.24 | .116 | 2.95 | .027 | .69 | .469 | 11.91 |
M83528/013C003 | .875 | 22.23 | .875 | 22.23 | .175 | 4.45 | .425 | 10.80 | .116 | 2.95 | .027 | .69 | .563 | 14.30 |
M83528/013C005 | 1.313 | 33.35 | 1.313 | 33.35 | .630 | 16.00 | .320 | 8.13 | .140 | 3.56 | .027 | .69 | .875 | 22.23 |
M83528/013C007 | 1.496 | 38.00 | 1.496 | 38.00 | .760 | 19.30 | .385 | 9.78 | .155 | 3.94 | .027 | .69 | .450 | 11.43 |
M83528/013C009 | 1.625 | 41.28 | 1.625 | 41.28 | .905 | 22.99 | .405 | 10.29 | .169 | 4.29 | .027 | .69 | .469 | 11.91 |
M83528/013C010 | 1.594 | 40.49 | 2.094 | 53.19 | .405 | 10.29 | .905 | 22.99 | .169 | 4.29 | .027 | .69 | .250 | 6.35 |
M83528/013C015 | 1.875 | 47.63 | 1.875 | 47.63 | 1.130 | 28.70 | .505 | 12.83 | .180 | 4.57 | .027 | .69 | 1.15 | 29.21 |
M83528/013C016 | 1.750 | 44.45 | 2.500 | 63.50 | .505 | 12.83 | 1.130 | 28.70 | .171 | 4.34 | .027 | .69 | .250 | 6.35 |
M83528/013C020 | 1.937 | 49.20 | 2.687 | 68.25 | .633 | 16.08 | 1.380 | 35.05 | .206 | 5.23 | .027 | .69 | .250 | 6.35 |
M83528/013C021 | 1.531 | 38.89 | 2.281 | 57.94 | .632 | 16.05 | 1.382 | 35.10 | .150 | 3.81 | .027 | .69 | .125 | 3.18 |
M83528/013C024 | 2.438 | 61.93 | 3.188 | 80.98 | .805 | 20.45 | 1.600 | 40.64 | .257 | 6.53 | .027 | .69 | .313 | 7.95 |
M83528/013C025 | 1.750 | 44.45 | 2.500 | 63.50 | .800 | 20.32 | 1.600 | 40.64 | .160 .150 | 4.06 3.81 | .027 | .69 | .125 | 3.18 |
M83528/013C027 | 3.500 | 88.90 | 2.500 | 63.50 | 1.880 | 47.75 | .880 | 22.35 | .266 | 6.76 | .027 | .69 | .313 | 7.95 |
M83528/013C028 | 1.784 | 45.31 | 2.781 | 70.64 | .882 | 22.40 | 1.882 | 47.80 | .156 .141 | 3.96 3.58 | .027 | .69 | .125 | 3.18 |
M83528/013C031 | 2.750 | 69.85 | 3.875 | 98.43 | 1.155 | 29.34 | 2.300 | 58.42 | .270 | 6.86 | .027 | .69 | .312 | 7.92 |
M83528/013C032 | 2.000 | 50.80 | 3.156 | 80.16 | 1.155 | 29.34 | 2.300 | 58.42 | .150 | 3.81 | .027 | .69 | .125 | 3.18 |
M83528/013C034 | 4.500 | 114.30 | 3.000 | 76.20 | 2.850 | 72.39 | 1.350 | 34.29 | .266 | 6.76 | .027 | .69 | .313 | 7.95 |
M83528/013C035 | 3.844 | 97.64 | 2.344 | 59.54 | 2.850 | 72.39 | 1.350 | 34.29 | .172 .188 | 4.37 4.78 | .027 | .69 | .125 | 3.18 |
M83528/013C038 | 3.750 | 95.25 | 5.440 | 138.18 | 1.710 | 43.43 | 3.410 | 86.61 | .264 .250 | 6.71 6.35 | .027 | .69 | .250 | 6.35 |
M83528/013C039 | 3.750 | 95.25 | 5.438 | 138.13 | 1.710 | 43.43 | 3.410 | 86.61 | .266 | 6.76 | .027 | .69 | .250 | 6.35 |
M83528/013C040 | 4.188 | 106.38 | 6.344 | 161.14 | 2.160 | 54.86 | 4.310 | 109.47 | .266 .281 | 6.76 7.14 | .027 | .69 | .250 | 6.35 |
M83528/013C041 | 6.344 | 161.14 | 4.188 | 106.38 | 4.310 | 109.47 | 2.160 | 54.86 | .266 | 6.76 | .027 | .69 | .250 | 6.35 |
M83528/013C042 | 5.438 | 138.13 | 8.688 | 220.68 | 3.260 | 82.80 | 6.510 | 165.35 | .250 .328 | 6.35 8.33 | .027 | .69 | .250 | 6.35 |
SSP fabricates M83528/013 EMI waveguide gaskets from SSP2486-70, a QPL certified MIL-DTL-83528 Type D material.
Use SSP2486-70 instead of Parker Chomerics CHO-SEAL 1217 and 1298.
| MIL-DTL-83528 Part Number | Dimensions (Configuration A) | |||||||||||||
| A ± .015 (0.38) | B ± .015 (0.38) | C + .015 (0.38) -.000 (0.00) | D + .015 (0.38) – .000 (0.00) | E ± .010 (0.25) | T ± .003 (0.08) | F Radius ± .010 (0.25) | ||||||||
M83528/013D001 | .750 | 19.05 | .750 | 19.05 | .145 | 3.68 | .285 | 7.24 | .116 | 2.95 | .027 | .69 | .469 | 11.91 |
M83528/013D003 | .875 | 22.23 | .875 | 22.23 | .175 | 4.45 | .425 | 10.80 | .116 | 2.95 | .027 | .69 | .563 | 14.30 |
M83528/013D005 | 1.313 | 33.35 | 1.313 | 33.35 | .630 | 16.00 | .320 | 8.13 | .140 | 3.56 | .027 | .69 | .875 | 22.23 |
M83528/013D007 | 1.496 | 38.00 | 1.496 | 38.00 | .760 | 19.30 | .385 | 9.78 | .155 | 3.94 | .027 | .69 | .450 | 11.43 |
M83528/013D009 | 1.625 | 41.28 | 1.625 | 41.28 | .905 | 22.99 | .405 | 10.29 | .169 | 4.29 | .027 | .69 | .469 | 11.91 |
M83528/013D010 | 1.594 | 40.49 | 2.094 | 53.19 | .405 | 10.29 | .905 | 22.99 | .169 | 4.29 | .027 | .69 | .250 | 6.35 |
M83528/013D015 | 1.875 | 47.63 | 1.875 | 47.63 | 1.130 | 28.70 | .505 | 12.83 | .180 | 4.57 | .027 | .69 | 1.15 | 29.21 |
M83528/013D016 | 1.750 | 44.45 | 2.500 | 63.50 | .505 | 12.83 | 1.130 | 28.70 | .171 | 4.34 | .027 | .69 | .250 | 6.35 |
M83528/013D020 | 1.937 | 49.20 | 2.687 | 68.25 | .633 | 16.08 | 1.380 | 35.05 | .206 | 5.23 | .027 | .69 | .250 | 6.35 |
M83528/013D021 | 1.531 | 38.89 | 2.281 | 57.94 | .632 | 16.05 | 1.382 | 35.10 | .150 | 3.81 | .027 | .69 | .125 | 3.18 |
M83528/013D024 | 2.438 | 61.93 | 3.188 | 80.98 | .805 | 20.45 | 1.600 | 40.64 | .257 | 6.53 | .027 | .69 | .313 | 7.95 |
M83528/013D025 | 1.750 | 44.45 | 2.500 | 63.50 | .800 | 20.32 | 1.600 | 40.64 | .160 .150 | 4.06 3.81 | .027 | .69 | .125 | 3.18 |
M83528/013D027 | 3.500 | 88.90 | 2.500 | 63.50 | 1.880 | 47.75 | .880 | 22.35 | .266 | 6.76 | .027 | .69 | .313 | 7.95 |
M83528/013D028 | 1.784 | 45.31 | 2.781 | 70.64 | .882 | 22.40 | 1.882 | 47.80 | .156 .141 | 3.96 3.58 | .027 | .69 | .125 | 3.18 |
M83528/013D031 | 2.750 | 69.85 | 3.875 | 98.43 | 1.155 | 29.34 | 2.300 | 58.42 | .270 | 6.86 | .027 | .69 | .312 | 7.92 |
M83528/013D032 | 2.000 | 50.80 | 3.156 | 80.16 | 1.155 | 29.34 | 2.300 | 58.42 | .150 | 3.81 | .027 | .69 | .125 | 3.18 |
M83528/013D034 | 4.500 | 114.30 | 3.000 | 76.20 | 2.850 | 72.39 | 1.350 | 34.29 | .266 | 6.76 | .027 | .69 | .313 | 7.95 |
M83528/013D035 | 3.844 | 97.64 | 2.344 | 59.54 | 2.850 | 72.39 | 1.350 | 34.29 | .172 .188 | 4.37 4.78 | .027 | .69 | .125 | 3.18 |
M83528/013D038 | 3.750 | 95.25 | 5.440 | 138.18 | 1.710 | 43.43 | 3.410 | 86.61 | .264 .250 | 6.71 6.35 | .027 | .69 | .250 | 6.35 |
M83528/013D039 | 3.750 | 95.25 | 5.438 | 138.13 | 1.710 | 43.43 | 3.410 | 86.61 | .266 | 6.76 | .027 | .69 | .250 | 6.35 |
M83528/013D040 | 4.188 | 106.38 | 6.344 | 161.14 | 2.160 | 54.86 | 4.310 | 109.47 | .266 .281 | 6.76 7.14 | .027 | .69 | .250 | 6.35 |
M83528/013D041 | 6.344 | 161.14 | 4.188 | 106.38 | 4.310 | 109.47 | 2.160 | 54.86 | .266 | 6.76 | .027 | .69 | .250 | 6.35 |
M83528/013D042 | 5.438 | 138.13 | 8.688 | 220.68 | 3.260 | 82.80 | 6.510 | 165.35 | .250 .328 | 6.35 8.33 | .027 | .69 | .250 | 6.35 |
SSP fabricates M83528/013 EMI waveguide gaskets from SSP2571-85, a QPL certified MIL-DTL-83528 Type K material.
Use SSP2571-80 instead of Parker Chomerics CHO-SEAL 1212.
| MIL-DTL-83528 Part Number | Dimensions (Configuration A) | |||||||||||||
| A ± .015 (0.38) | B ± .015 (0.38) | C + .015 (0.38) -.000 (0.00) | D + .015 (0.38) – .000 (0.00) | E ± .010 (0.25) | T ± .003 (0.08) | F Radius ± .010 (0.25) | ||||||||
M83528/013K001 | .750 | 19.05 | .750 | 19.05 | .145 | 3.68 | .285 | 7.24 | .116 | 2.95 | .027 | .69 | .469 | 11.91 |
M83528/013K003 | .875 | 22.23 | .875 | 22.23 | .175 | 4.45 | .425 | 10.80 | .116 | 2.95 | .027 | .69 | .563 | 14.30 |
M83528/013K005 | 1.313 | 33.35 | 1.313 | 33.35 | .630 | 16.00 | .320 | 8.13 | .140 | 3.56 | .027 | .69 | .875 | 22.23 |
M83528/013K007 | 1.496 | 38.00 | 1.496 | 38.00 | .760 | 19.30 | .385 | 9.78 | .155 | 3.94 | .027 | .69 | .450 | 11.43 |
M83528/013K009 | 1.625 | 41.28 | 1.625 | 41.28 | .905 | 22.99 | .405 | 10.29 | .169 | 4.29 | .027 | .69 | .469 | 11.91 |
M83528/013K010 | 1.594 | 40.49 | 2.094 | 53.19 | .405 | 10.29 | .905 | 22.99 | .169 | 4.29 | .027 | .69 | .250 | 6.35 |
M83528/013K015 | 1.875 | 47.63 | 1.875 | 47.63 | 1.130 | 28.70 | .505 | 12.83 | .180 | 4.57 | .027 | .69 | 1.15 | 29.21 |
M83528/013K016 | 1.750 | 44.45 | 2.500 | 63.50 | .505 | 12.83 | 1.130 | 28.70 | .171 | 4.34 | .027 | .69 | .250 | 6.35 |
M83528/013K020 | 1.937 | 49.20 | 2.687 | 68.25 | .633 | 16.08 | 1.380 | 35.05 | .206 | 5.23 | .027 | .69 | .250 | 6.35 |
M83528/013K021 | 1.531 | 38.89 | 2.281 | 57.94 | .632 | 16.05 | 1.382 | 35.10 | .150 | 3.81 | .027 | .69 | .125 | 3.18 |
M83528/013K024 | 2.438 | 61.93 | 3.188 | 80.98 | .805 | 20.45 | 1.600 | 40.64 | .257 | 6.53 | .027 | .69 | .313 | 7.95 |
M83528/013K025 | 1.750 | 44.45 | 2.500 | 63.50 | .800 | 20.32 | 1.600 | 40.64 | .160 .150 | 4.06 3.81 | .027 | .69 | .125 | 3.18 |
M83528/013K027 | 3.500 | 88.90 | 2.500 | 63.50 | 1.880 | 47.75 | .880 | 22.35 | .266 | 6.76 | .027 | .69 | .313 | 7.95 |
M83528/013K028 | 1.784 | 45.31 | 2.781 | 70.64 | .882 | 22.40 | 1.882 | 47.80 | .156 .141 | 3.96 3.58 | .027 | .69 | .125 | 3.18 |
M83528/013K031 | 2.750 | 69.85 | 3.875 | 98.43 | 1.155 | 29.34 | 2.300 | 58.42 | .270 | 6.86 | .027 | .69 | .312 | 7.92 |
M83528/013K032 | 2.000 | 50.80 | 3.156 | 80.16 | 1.155 | 29.34 | 2.300 | 58.42 | .150 | 3.81 | .027 | .69 | .125 | 3.18 |
M83528/013K034 | 4.500 | 114.30 | 3.000 | 76.20 | 2.850 | 72.39 | 1.350 | 34.29 | .266 | 6.76 | .027 | .69 | .313 | 7.95 |
M83528/013K035 | 3.844 | 97.64 | 2.344 | 59.54 | 2.850 | 72.39 | 1.350 | 34.29 | .172 .188 | 4.37 4.78 | .027 | .69 | .125 | 3.18 |
M83528/013K038 | 3.750 | 95.25 | 5.440 | 138.18 | 1.710 | 43.43 | 3.410 | 86.61 | .264 .250 | 6.71 6.35 | .027 | .69 | .250 | 6.35 |
M83528/013K039 | 3.750 | 95.25 | 5.438 | 138.13 | 1.710 | 43.43 | 3.410 | 86.61 | .266 | 6.76 | .027 | .69 | .250 | 6.35 |
M83528/013K040 | 4.188 | 106.38 | 6.344 | 161.14 | 2.160 | 54.86 | 4.310 | 109.47 | .266 .281 | 6.76 7.14 | .027 | .69 | .250 | 6.35 |
M83528/013K041 | 6.344 | 161.14 | 4.188 | 106.38 | 4.310 | 109.47 | 2.160 | 54.86 | .266 | 6.76 | .027 | .69 | .250 | 6.35 |
M83528/013K042 | 5.438 | 138.13 | 8.688 | 220.68 | 3.260 | 82.80 | 6.510 | 165.35 | .250 .328 | 6.35 8.33 | .027 | .69 | .250 | 6.35 |
M83528/013 Configuration B applies to EMI waveguide gaskets that are flat, die cut and circular in shape.
Use this table to find M83528/013 part numbers and dimensions.
Substitute the X in the part number for the lettered designation of the M83528 material you need.
MIL-DTL-83528 | Dimensions (Configuration B) | |||||||||
A | B | C | D | T | ||||||
M83528/013X019 | 3.125 | 79.38 | .632 | 16.05 | 1.382 | 35.10 | .234 | 5.94 | .027 | .69 |
M83528/013X026 | 3.625 | 92.08 | .882 | 22.40 | 1.882 | 47.80 | .234 | 5.94 | .027 | .69 |
M83528/013X033 | 5.312 | 134.92 | 1.350 | 34.29 | 2.850 | 72.39 | .290 | 7.37 | .027 | .69 |
SSP fabricates M83528/013 EMI waveguide gaskets from SSP2569-65, a QPL certified MIL-DTL-83528 Type A material.
Use SSP2569-65 instead of Parker Chomerics CHO-SEAL 1215.
MIL-DTL-83528 | Dimensions (Configuration B) | |||||||||
A | B | C | D | T | ||||||
M83528/013A019 | 3.125 | 79.38 | .632 | 16.05 | 1.382 | 35.10 | .234 | 5.94 | .027 | .69 |
M83528/013A026 | 3.625 | 92.08 | .882 | 22.40 | 1.882 | 47.80 | .234 | 5.94 | .027 | .69 |
M83528/013A033 | 5.312 | 134.92 | 1.350 | 34.29 | 2.850 | 72.39 | .290 | 7.37 | .027 | .69 |
SSP fabricates M83528/013 EMI waveguide gaskets from SSP2568-65, a QPL certified MIL-DTL-83528 Type B material.
Use SSP2568-65 instead of Parker Chomerics CHO-SEAL 1285.
MIL-DTL-83528 | Dimensions (Configuration B) | |||||||||
A | B | C | D | T | ||||||
M83528/013B019 | 3.125 | 79.38 | .632 | 16.05 | 1.382 | 35.10 | .234 | 5.94 | .027 | .69 |
M83528/013B026 | 3.625 | 92.08 | .882 | 22.40 | 1.882 | 47.80 | .234 | 5.94 | .027 | .69 |
M83528/013B033 | 5.312 | 134.92 | 1.350 | 34.29 | 2.850 | 72.39 | .290 | 7.37 | .027 | .69 |
SSP fabricates M83528/013 EMI waveguide gaskets from SSP2573-75, a QPL certified MIL-DTL-83528 Type C material.
Use SSP2573-75 instead of Parker Chomerics CHO-SEAL 1217.
MIL-DTL-83528 | Dimensions (Configuration B) | |||||||||
A | B | C | D | T | ||||||
M83528/013C019 | 3.125 | 79.38 | .632 | 16.05 | 1.382 | 35.10 | .234 | 5.94 | .027 | .69 |
M83528/013C026 | 3.625 | 92.08 | .882 | 22.40 | 1.882 | 47.80 | .234 | 5.94 | .027 | .69 |
M83528/013C033 | 5.312 | 134.92 | 1.350 | 34.29 | 2.850 | 72.39 | .290 | 7.37 | .027 | .69 |
SSP fabricates M83528/013 EMI waveguide gaskets from SSP2486-70, a QPL certified MIL-DTL-83528 Type D material.
Use SSP2486-70 instead of Parker Chomerics CHO-SEAL 1217 and 1298.
MIL-DTL-83528 | Dimensions (Configuration B) | |||||||||
A | B | C | D | T | ||||||
M83528/013D019 | 3.125 | 79.38 | .632 | 16.05 | 1.382 | 35.10 | .234 | 5.94 | .027 | .69 |
M83528/013D026 | 3.625 | 92.08 | .882 | 22.40 | 1.882 | 47.80 | .234 | 5.94 | .027 | .69 |
M83528/013D033 | 5.312 | 134.92 | 1.350 | 34.29 | 2.850 | 72.39 | .290 | 7.37 | .027 | .69 |
SSP fabricates M83528/013 EMI waveguide gaskets from SSP2571-85, a QPL certified MIL-DTL-83528 Type K material.
Use SSP2571-80 instead of Parker Chomerics CHO-SEAL 1212.
MIL-DTL-83528 | Dimensions (Configuration B) | |||||||||
A | B | C | D | T | ||||||
M83528/013K019 | 3.125 | 79.38 | .632 | 16.05 | 1.382 | 35.10 | .234 | 5.94 | .027 | .69 |
M83528/013K026 | 3.625 | 92.08 | .882 | 22.40 | 1.882 | 47.80 | .234 | 5.94 | .027 | .69 |
M83528/013K033 | 5.312 | 134.92 | 1.350 | 34.29 | 2.850 | 72.39 | .290 | 7.37 | .027 | .69 |
M83528/013 Configuration E applies to EMI waveguide gaskets that are molded into rectangular shapes and have a O-shaped cross-section.
Use this table to find M83528/013 part numbers and dimensions.
Substitute the X in the part number for the lettered designation of the M83528 material you need.
| MIL-DTL-83528 Part Number | Dimensions (Configuration C) | |||||
| A | B | T | ||||
M83528/013X013 | 1.368 ± .012 | 34.75 .03 | .868 | 22.05 .25 | .103 ±.003 | 2.62 .08 |
M83528/013X018 | 1.616 ± .015 | 41.05 .38 | .991 | 25.17 .25 | .103 ±.003 | 2.62 .08 |
M83528/013X023 | 1.866 ± .015 | 41.05 .38 | 1.116 | 28.35 .30 | .103 ±.003 | 2.62 .08 |
M83528/013X030 | 2.449 ± .020 | 62.20 .51 | 1.449 | 36.80 .33 | .139 ±.004 | 3.53 .10 |
M83528/013X037 | 3.451 ± .024 | 87.66 .61 | 1.951 | 49.56 .46 | .139 ±.004 | 3.53 .10 |
SSP fabricates M83528/013 EMI waveguide gaskets from SSP2569-65, a QPL certified MIL-DTL-83528 Type A material.
Use SSP2569-65 instead of Parker Chomerics CHO-SEAL 1215.
| MIL-DTL-83528 Part Number | Dimensions (Configuration C) | |||||
| A | B | T | ||||
M83528/013A013 | 1.368 ± .012 | 34.75 .03 | .868 | 22.05 .25 | .103 ±.003 | 2.62 .08 |
M83528/013A018 | 1.616 ± .015 | 41.05 .38 | .991 | 25.17 .25 | .103 ±.003 | 2.62 .08 |
M83528/013A023 | 1.866 ± .015 | 41.05 .38 | 1.116 | 28.35 .30 | .103 ±.003 | 2.62 .08 |
M83528/013A030 | 2.449 ± .020 | 62.20 .51 | 1.449 | 36.80 .33 | .139 ±.004 | 3.53 .10 |
M83528/013A037 | 3.451 ± .024 | 87.66 .61 | 1.951 | 49.56 .46 | .139 ±.004 | 3.53 .10 |
SSP fabricates M83528/013 EMI waveguide gaskets from SSP2568-65, a QPL certified MIL-DTL-83528 Type B material.
Use SSP2568-65 instead of Parker Chomerics CHO-SEAL 1285.
| MIL-DTL-83528 Part Number | Dimensions (Configuration C) | |||||
| A | B | T | ||||
M83528/013B013 | 1.368 ± .012 | 34.75 .03 | .868 | 22.05 .25 | .103 ±.003 | 2.62 .08 |
M83528/013B018 | 1.616 ± .015 | 41.05 .38 | .991 | 25.17 .25 | .103 ±.003 | 2.62 .08 |
M83528/013B023 | 1.866 ± .015 | 41.05 .38 | 1.116 | 28.35 .30 | .103 ±.003 | 2.62 .08 |
M83528/013B030 | 2.449 ± .020 | 62.20 .51 | 1.449 | 36.80 .33 | .139 ±.004 | 3.53 .10 |
M83528/013B037 | 3.451 ± .024 | 87.66 .61 | 1.951 | 49.56 .46 | .139 ±.004 | 3.53 .10 |
SSP fabricates M83528/013 EMI waveguide gaskets from SSP2573-75, a QPL certified MIL-DTL-83528 Type C material.
Use SSP2573-75 instead of Parker Chomerics CHO-SEAL 1217.
| MIL-DTL-83528 Part Number | Dimensions (Configuration C) | |||||
| A | B | T | ||||
M83528/013C013 | 1.368 ± .012 | 34.75 .03 | .868 | 22.05 .25 | .103 ±.003 | 2.62 .08 |
M83528/013C018 | 1.616 ± .015 | 41.05 .38 | .991 | 25.17 .25 | .103 ±.003 | 2.62 .08 |
M83528/013C023 | 1.866 ± .015 | 41.05 .38 | 1.116 | 28.35 .30 | .103 ±.003 | 2.62 .08 |
M83528/013C030 | 2.449 ± .020 | 62.20 .51 | 1.449 | 36.80 .33 | .139 ±.004 | 3.53 .10 |
M83528/013C037 | 3.451 ± .024 | 87.66 .61 | 1.951 | 49.56 .46 | .139 ±.004 | 3.53 .10 |
SSP fabricates M83528/013 EMI waveguide gaskets from SSP2486-70, a QPL certified MIL-DTL-83528 Type D material.
Use SSP2486-70 instead of Parker Chomerics CHO-SEAL 1217 and 1298.
| MIL-DTL-83528 Part Number | Dimensions (Configuration C) | |||||
| A | B | T | ||||
M83528/013D013 | 1.368 ± .012 | 34.75 .03 | .868 | 22.05 .25 | .103 ±.003 | 2.62 .08 |
M83528/013D018 | 1.616 ± .015 | 41.05 .38 | .991 | 25.17 .25 | .103 ±.003 | 2.62 .08 |
M83528/013D023 | 1.866 ± .015 | 41.05 .38 | 1.116 | 28.35 .30 | .103 ±.003 | 2.62 .08 |
M83528/013D030 | 2.449 ± .020 | 62.20 .51 | 1.449 | 36.80 .33 | .139 ±.004 | 3.53 .10 |
M83528/013D037 | 3.451 ± .024 | 87.66 .61 | 1.951 | 49.56 .46 | .139 ±.004 | 3.53 .10 |
SSP fabricates M83528/013 EMI waveguide gaskets from SSP2571-85, a QPL certified MIL-DTL-83528 Type K material.
Use SSP2571-80 instead of Parker Chomerics CHO-SEAL 1212.
| MIL-DTL-83528 Part Number | Dimensions (Configuration C) | |||||
| A | B | T | ||||
M83528/013K013 | 1.368 ± .012 | 34.75 .03 | .868 | 22.05 .25 | .103 ±.003 | 2.62 .08 |
M83528/013K018 | 1.616 ± .015 | 41.05 .38 | .991 | 25.17 .25 | .103 ±.003 | 2.62 .08 |
M83528/013K023 | 1.866 ± .015 | 41.05 .38 | 1.116 | 28.35 .30 | .103 ±.003 | 2.62 .08 |
M83528/013K030 | 2.449 ± .020 | 62.20 .51 | 1.449 | 36.80 .33 | .139 ±.004 | 3.53 .10 |
M83528/013K037 | 3.451 ± .024 | 87.66 .61 | 1.951 | 49.56 .46 | .139 ±.004 | 3.53 .10 |
M83528/013 Configuration D applies to EMI waveguide gaskets that are molded into circular shapes and have a O cross-section.
Use this table to find M83528/013 part numbers and dimensions.
Substitute the X in the part number for the lettered designation of the M83528 material you need.
The choices for material types are A, B, C, D, or K. (This page also contains M83528 part number tables for each lettered material type.)
MIL-DTL-83528 Part Number | Dimensions (Configuration D) | Cross section area (cm2) | |
D (ID) | T | ||
M83528/013X022 | 2.011 | .139 | .0979 |
M83528/013X029 | 2.683 | .115 | .0670 |
SSP fabricates M83528/013 EMI waveguide gaskets from SSP2569-65, a QPL certified MIL-DTL-83528 Type A material.
Use SSP2569-65 instead of Parker Chomerics CHO-SEAL 1215.
MIL-DTL-83528 Part Number | Dimensions (Configuration D) | Cross section area (cm2) | |
D (ID) | T | ||
M83528/013A022 | 2.011 | .139 | .0979 |
M83528/013A029 | 2.683 | .115 | .0670 |
SSP fabricates M83528/013 EMI waveguide gaskets from SSP2568-65, a QPL certified MIL-DTL-83528 Type B material.
Use SSP2568-65 instead of Parker Chomerics CHO-SEAL 1285.
MIL-DTL-83528 Part Number | Dimensions (Configuration D) | Cross section area (cm2) | |
D (ID) | T | ||
M83528/013B022 | 2.011 | .139 | .0979 |
M83528/013B029 | 2.683 | .115 | .0670 |
SSP fabricates M83528/013 EMI waveguide gaskets from SSP2573-75, a QPL certified MIL-DTL-83528 Type C material.
Use SSP2573-75 instead of Parker Chomerics CHO-SEAL 1217.
MIL-DTL-83528 Part Number | Dimensions (Configuration D) | Cross section area (cm2) | |
D (ID) | T | ||
M83528/013C022 | 2.011 | .139 | .0979 |
M83528/013C029 | 2.683 | .115 | .0670 |
SSP fabricates M83528/013 EMI waveguide gaskets from SSP2486-70, a QPL certified MIL-DTL-83528 Type D material.
Use SSP2486-70 instead of Parker Chomerics CHO-SEAL 1217 and 1298.
MIL-DTL-83528 Part Number | Dimensions (Configuration D) | Cross section area (cm2) | |
D (ID) | T | ||
M83528/013D022 | 2.011 | .139 | .0979 |
M83528/013D029 | 2.683 | .115 | .0670 |
SSP fabricates M83528/013 EMI waveguide gaskets from SSP2571-85, a QPL certified MIL-DTL-83528 Type K material.
Use SSP2571-80 instead of Parker Chomerics CHO-SEAL 1212.
|
MIL-DTL-83528 Part Number |
Dimensions (Configuration D) |
Cross section area (cm2) |
|
|
D (ID) |
T |
||
M83528/013K022 |
2.011 |
.139 |
.0979 |
M83528/013K029 |
2.683 |
.115 |
.0670 |
M83528/013 Configuration E applies to EMI waveguide gaskets that are molded into circular shapes and have a D-shaped cross-section.
Use this table to find M83528/013 part numbers and dimensions.
Substitute the X in the part number for the lettered designation of the M83528 material you need.
The choices for material types are A, B, C, D, or K. (This page also contains M83528 part number tables for each lettered material type.)
MIL-DTL-83528 Part Number | Dimensions | |||||||
A | B | D (ID) | T | |||||
M83528/013X002 | .056 | 1.42 | .041 | 1.04 | .410 | 10.41 | .082 | 2.08 |
M83528/013X004 | .048 | 1.22 | .039 | 0.99 | .587 | 14.91 | .078 | 1.98 |
M83528/013X006 | .125 | 3.18 | .078 | 1.98 | .885 | 22.48 | .155 | 3.94 |
M83528/013X008 | .065 | 1.65 | .049 | 1.24 | 1.122 | 28.50 | .099 | 2.51 |
M83528/013X011 | .088 | 2.24 | .048 | 1.22 | 1.340 | 34.04 | .095 | 2.41 |
M83528/013X012 | .077 | 1.96 | .058 | 1.47 | 1.310 | 33.27 | .115 | 2.92 |
M83528/013X014 | .085 | 2.16 | .048 | 1.22 | 1.392 | 35.36 | .095 | 2.41 |
M83528/013X017 | .078 | 2.16 | .053 | 1.35 | 1.550 | 39.37 | .105 | 2.67 |
M83528/013X036 | .188 | 4.78 | .120 | 3.05 | 3.910 ± .026 | 99.31 .66 | .240 | 6.10 |
SSP fabricates M83528/013 EMI waveguide gaskets from SSP2569-65, a QPL certified MIL-DTL-83528 Type A material.
Use SSP2569-65 instead of Parker Chomerics CHO-SEAL 1215.
MIL-DTL-83528 Part Number | Dimensions | |||||||
A | B | D (ID) | T | |||||
M83528/013A002 | .056 | 1.42 | .041 | 1.04 | .410 | 10.41 | .082 | 2.08 |
M83528/013A004 | .048 | 1.22 | .039 | 0.99 | .587 | 14.91 | .078 | 1.98 |
M83528/013A006 | .125 | 3.18 | .078 | 1.98 | .885 | 22.48 | .155 | 3.94 |
M83528/013A008 | .065 | 1.65 | .049 | 1.24 | 1.122 | 28.50 | .099 | 2.51 |
M83528/013A011 | .088 | 2.24 | .048 | 1.22 | 1.340 | 34.04 | .095 | 2.41 |
M83528/013A012 | .077 | 1.96 | .058 | 1.47 | 1.310 | 33.27 | .115 | 2.92 |
M83528/013A014 | .085 | 2.16 | .048 | 1.22 | 1.392 | 35.36 | .095 | 2.41 |
M83528/013A017 | .078 | 2.16 | .053 | 1.35 | 1.550 | 39.37 | .105 | 2.67 |
M83528/013A036 | .188 | 4.78 | .120 | 3.05 | 3.910 ± .026 | 99.31 .66 | .240 | 6.10 |
SSP fabricates M83528/013 EMI waveguide gaskets from SSP2368-65, a QPL certified MIL-DTL-83528 Type B material.
Use SSP2368-65 instead of Parker Chomerics CHO-SEAL 1285.
MIL-DTL-83528 Part Number | Dimensions | |||||||
A | B | D (ID) | T | |||||
M83528/013B002 | .056 | 1.42 | .041 | 1.04 | .410 | 10.41 | .082 | 2.08 |
M83528/013B004 | .048 | 1.22 | .039 | 0.99 | .587 | 14.91 | .078 | 1.98 |
M83528/013B006 | .125 | 3.18 | .078 | 1.98 | .885 | 22.48 | .155 | 3.94 |
M83528/013B008 | .065 | 1.65 | .049 | 1.24 | 1.122 | 28.50 | .099 | 2.51 |
M83528/013B011 | .088 | 2.24 | .048 | 1.22 | 1.340 | 34.04 | .095 | 2.41 |
M83528/013B012 | .077 | 1.96 | .058 | 1.47 | 1.310 | 33.27 | .115 | 2.92 |
M83528/013B014 | .085 | 2.16 | .048 | 1.22 | 1.392 | 35.36 | .095 | 2.41 |
M83528/013B017 | .078 | 2.16 | .053 | 1.35 | 1.550 | 39.37 | .105 | 2.67 |
M83528/013B036 | .188 | 4.78 | .120 | 3.05 | 3.910 ± .026 | 99.31 .66 | .240 | 6.10 |
SSP fabricates M83528/013 non-standard EMI O-rings from SSP2573-75, a QPL certified MIL-DTL-83528 Type C material.
Use SSP2573-75 instead of Parker Chomerics CHO-SEAL 1217.
MIL-DTL-83528 Part Number | Dimensions | |||||||
A | B | D (ID) | T | |||||
M83528/013C002 | .056 | 1.42 | .041 | 1.04 | .410 | 10.41 | .082 | 2.08 |
M83528/013C004 | .048 | 1.22 | .039 | 0.99 | .587 | 14.91 | .078 | 1.98 |
M83528/013C006 | .125 | 3.18 | .078 | 1.98 | .885 | 22.48 | .155 | 3.94 |
M83528/013C008 | .065 | 1.65 | .049 | 1.24 | 1.122 | 28.50 | .099 | 2.51 |
M83528/013C011 | .088 | 2.24 | .048 | 1.22 | 1.340 | 34.04 | .095 | 2.41 |
M83528/013C012 | .077 | 1.96 | .058 | 1.47 | 1.310 | 33.27 | .115 | 2.92 |
M83528/013C014 | .085 | 2.16 | .048 | 1.22 | 1.392 | 35.36 | .095 | 2.41 |
M83528/013C017 | .078 | 2.16 | .053 | 1.35 | 1.550 | 39.37 | .105 | 2.67 |
M83528/013C036 | .188 | 4.78 | .120 | 3.05 | 3.910 ± .026 | 99.31 .66 | .240 | 6.10 |
SSP fabricates M83528/013 EMI waveguide gaskets from SSP2486-70, a QPL certified MIL-DTL-83528 Type D material.
Use SSP2486-70 instead of Parker Chomerics CHO-SEAL 1217 and CHO-SEAL 1298.
MIL-DTL-83528 Part Number | Dimensions | |||||||
A | B | D (ID) | T | |||||
M83528/013D002 | .056 | 1.42 | .041 | 1.04 | .410 | 10.41 | .082 | 2.08 |
M83528/013D004 | .048 | 1.22 | .039 | 0.99 | .587 | 14.91 | .078 | 1.98 |
M83528/013D006 | .125 | 3.18 | .078 | 1.98 | .885 | 22.48 | .155 | 3.94 |
M83528/013D008 | .065 | 1.65 | .049 | 1.24 | 1.122 | 28.50 | .099 | 2.51 |
M83528/013D011 | .088 | 2.24 | .048 | 1.22 | 1.340 | 34.04 | .095 | 2.41 |
M83528/013D012 | .077 | 1.96 | .058 | 1.47 | 1.310 | 33.27 | .115 | 2.92 |
M83528/013D014 | .085 | 2.16 | .048 | 1.22 | 1.392 | 35.36 | .095 | 2.41 |
M83528/013D017 | .078 | 2.16 | .053 | 1.35 | 1.550 | 39.37 | .105 | 2.67 |
M83528/013D036 | .188 | 4.78 | .120 | 3.05 | 3.910 ± .026 | 99.31 .66 | .240 | 6.10 |
SSP fabricates M83528/013 EMI waveguide gaskets from SSP2571-85, a QPL certified MIL-DTL-83528 Type K material.
Use this EMI elastomer instead of Parker Chomerics CHO-SEAL 1212.
MIL-DTL-83528 Part Number | Dimensions | |||||||
A | B | D (ID) | T | |||||
M83528/013K002 | .056 | 1.42 | .041 | 1.04 | .410 | 10.41 | .082 | 2.08 |
M83528/013K004 | .048 | 1.22 | .039 | 0.99 | .587 | 14.91 | .078 | 1.98 |
M83528/013K006 | .125 | 3.18 | .078 | 1.98 | .885 | 22.48 | .155 | 3.94 |
M83528/013K008 | .065 | 1.65 | .049 | 1.24 | 1.122 | 28.50 | .099 | 2.51 |
M83528/013K011 | .088 | 2.24 | .048 | 1.22 | 1.340 | 34.04 | .095 | 2.41 |
M83528/013K012 | .077 | 1.96 | .058 | 1.47 | 1.310 | 33.27 | .115 | 2.92 |
M83528/013K014 | .085 | 2.16 | .048 | 1.22 | 1.392 | 35.36 | .095 | 2.41 |
M83528/013K017 | .078 | 2.16 | .053 | 1.35 | 1.550 | 39.37 | .105 | 2.67 |
M83528/013K036 | .188 | 4.78 | .120 | 3.05 | 3.910 ± .026 | 99.31 .66 | .240 | 6.10 |
*SSP is not a Parker Chomerics CHO-SEAL distributor. We make our own EMI shielding materials.
Parker Chomerics and CHO-SEAL are the property of Parker Hannifin Corporation.
